Functional Sheet, Film

Our product is high functional Sheet and Film,
it makes combination that material and our coating which can’t be copied.

MSK’s production technology which was born from High technology and Nanotechnology

MSK’s original technique that can provide high functional sheets and film.

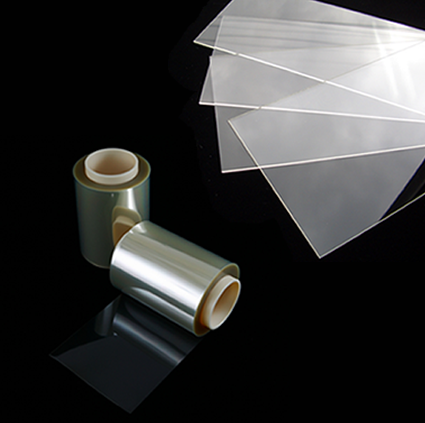

Functional Sheet and Functional Film

Functional Sheet and Functional Film

We call it “Sheet “that the material to be processed by piece of sheet.
We call it “Film “that the material to be processed by a roll.
We prepare for diverse Sheet and Film, in order to you can choose each function and characteristic.

Functional Sheet

PMR

Suitable for printing and has an excellent hardness.This is MSK’s standard hard coat.

PMMA
PMR1/PMR2
PMR coat on PMMA sheet, PMR1 is coat for One coat, PMR2 is coat for Both side.
PC
PMR1/PMR2
PMR coat on Polycarbonate sheet, PMR1 is coat for One coat, PMR2 is coat for Both side.

ASPMR

ASPMR has the characteristic of PMR, and add Anti-static function. Because it hard to be charge static electricity, it has a great effect on improving the yield rate during processing.

PMMA
ASPMR1/ASPMR2
ASPMR coat on PMMA sheet, ASPMR1 is coat for One coat, ASPMR2 is coat for Both side.
PC
ASPMR1/ASPMR2
ASPMR coat on PC sheet, ASPMR1 is coat for One coat, ASPMR2 is coat for Both side.

GL30/90/110/130

Non-Glare hard coating is a process that diffuses light by creating irregularity on plastic surfaces.
The more the figure of beside product name, The higher Anti-glare property and Haze.
Regarding GL30, the Non-glare is nearly close to clear, irregularity on plastic surfaces has effect of preventing the watermark and newton ring.

TS
series

Industry-leading abrasion-resistant hard-coated plastic sheet. (e.g. : 10,000RT by steel-wool)

TSW 310
Abrasion-resistance hard-coat on PC/PMMA two-layer sheet. Great performance of abrasion resistance and impact resistance.
TST 310
Abrasion-resistant hard-coat on PMMA/PC/PMMA three-layer sheet. Great performance of abrasion resistance and less deformation by the temperature changes or humidity variations.
TSM 310
Abrasion-resistant hard coat on PMMA sheet
Please see brochure

IF
series

Anti-fingerprint hard-coated plastic sheet.

IFW200
Anti-fingerprint hard-coat on PC/PMMA two-layer sheet. Great performance of anti-fingerprint and impact resistance.
IFT 200
Anti-fingerprint hard-coat on PMMA/PC/PMMA three-layer sheet. Great performance of anti-fingerprint and less deformation by the temperature changes or humidity variations.
IFM200
Anti-fingerprint hard-coat on PMMA sheet.
Please see brochure

TEPROT
series

MSK original hard-coated highly-rigid plastic sheet.

TR 2000
TR2000 has stiffness, scratch resistance, and difficult to cruck.
TR 2400
Anti-fingerprint hard-coat on highly-rigid plastic sheet.
TR 3600
Abrasion-resistance and slippery hard-coat on highly rigid sheet. Suitable for the touch panel.
Please see brochure

REGALIA
series

Super high hardness coated plastic sheet which defies the common wisdom.

RGM 200
Super high hardness coat on PMMA sheet. Pencil hardness:9H. Easier to print and cut than the glass. No broken piece to scatter even if it breaks.
RGW 310
Super high hardness coat on PC/PMMA two-layer sheet. Pencil hardness: 7H. Impact resistance.
RGT 200
Super high hardness coat on PMMA/PC/PMMA three-layer sheet. Pencil hardness: 7H. Less deformation by the temperature changes or humidity variations.
Please see brochure

PHOENIX
series

Hard-coating two layers sheet comes with low-warpage property in high temperature and high humid condition.

PX 87U
Special PMMA/PC two layers sheet treated by Anti-UV + Anti-scratching hard-coating.
Please see brochure
PX 88U
Special PMMA/PC two layers sheet treated by Anti-UV + Anti-finger print hard-coating.
Please see brochure
PX 89U
Special PMMA/PC two layers sheet treated by Anti-UV + Anti-static hard-coating.
Please see brochure

BENDARD
series

Hard-coating sheet yet with thermo fomability that was once considered impossible.

BRW100N
PMMA/PC two layers sheet treated by hard-coating which is capable of being thermo formed on PMMA side.
BRW310
PMMA/PC two layers sheet treated by hard-coating which is capable of being thermo formed on PMMA side, capable of print or Vacuum deposition on PC side.
Please see brochure

Functional Film

NREseries

Low rainbow-effect hard-coated PET film.

NRE2000
Hard-coat on both sides. Excellent at optical property.
Please see brochure
NRE2000U
NRE2000 add to Anti-UV hard-coat.
Please see brochure
NRE3200N
Hard-coat on one side and Clear-primer on the other side. Good workability.
Please see brochure
NRE3400N
Anti-fingerprint hard-coat on one side and Clear-primer on the other side. Suitable for the front panel of the touch panel.
Please see brochure
NRE3600
Slippery, abrasion-resistant and anti-UV hard-coat on one side and Clear-primer on the other side. Glass-like smooth touch surface.
Please see brochure

ABEseries

Anti-blocking hard-coated PET film for ITO process.

ABE2000
Anti-blocking hard-coat on both sides.
ABE3100
Anti-blocking hard-coat on one side and Clear-primer on the other side.
ABE3200
Anti-blocking hard-coat on one side and Hard-coat on the other side.
Please see brochure

AREseries

Hard-coating PET film that Low reflection feature applied by wet process.

ARE3000
Anti-reflection hard-coat on one side and Clear hard-coat on the other side.
ARE3100
Anti-reflection and Anti-fingerprint hard-coat on one side and Clear hard-coat on the other side.
Please see brochure

GLE
series

Anti-glare hard-coated PET film which can reduce the glare.
The last figure of the product name indicates the level of Haze.

GLE1200
Anti-glare hard-coat on one side PET film.
GLE1400
GLE1200 add to low reflection coating.
Please see brochure

GLA
series

Anti-glare hard-coated TAC film which can reduce the glare.
The last figure of the product name indicates the level of Haze.

GLA1200
Anti-glare hard-coat on one side TAC film.
GLA1400
GLA1200 add to low reflection coating.

NHP/UHP
series

Decorative film treated by MSK hard-coating on Toray “PICASUS” film material.

NHP 1400
Collaboration of metallic sheen film “PICASUS” with great transmission of radio wave by TORAY and Anti-fingerprint hard-coat by MSK.
Please see brochure
UHP 1400
Collaboration of metallic sheen film “PICASUS” with formability for insert molding by TORAY and Anti-fingerprint hard-coat by MSK.
Please see brochure

Other special coating film

Remarkable finger-smoothly and great with the stylus-pen.

PMMA
PMR1
PL100A
By add invisible irregularities, the film has transparency, realizes wonderful finger slipperiness, and easy to write with a stylus pen.
Please see brochure

ArchLite®

ArchLite® is MSK’s original high functional plastic sheet for our hard coat.
It has a register trade mark.
