Functional Sheet, Film
Our product is high functional Sheet and Film,
it makes combination that material and our coating which can’t be copied.
MSK’s production technology which was born from High technology and Nanotechnology
MSK’s original technique that can provide high functional sheets and film.

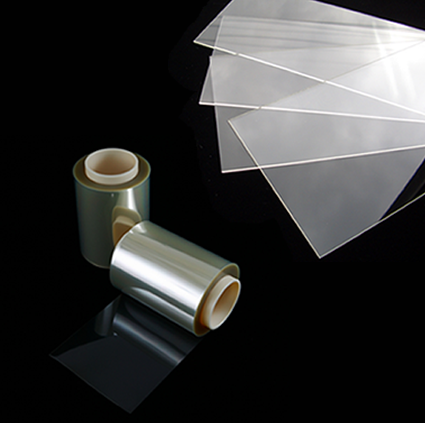

Functional Sheet and Functional Film
Functional Sheet and Functional Film
We call it “Sheet “that the material to be processed by piece of sheet.
We call it “Film “that the material to be processed by a roll.
We prepare for diverse Sheet and Film, in order to you can choose each function and characteristic.
![](images/sheet-film/sheet-film-pic.png)
Functional Sheet
PMR
Suitable for printing and has an excellent hardness.This is MSK’s standard hard coat.
- PMMA
- PMR1/PMR2
- PMR coat on PMMA sheet, PMR1 is coat for One coat, PMR2 is coat for Both side.
- PC
- PMR1/PMR2
- PMR coat on Polycarbonate sheet, PMR1 is coat for One coat, PMR2 is coat for Both side.
ASPMR
ASPMR has the characteristic of PMR, and add Anti-static function. Because it hard to be charge static electricity, it has a great effect on improving the yield rate during processing.
- PMMA
- ASPMR1/ASPMR2
- ASPMR coat on PMMA sheet, ASPMR1 is coat for One coat, ASPMR2 is coat for Both side.
- PC
- ASPMR1/ASPMR2
- ASPMR coat on PC sheet, ASPMR1 is coat for One coat, ASPMR2 is coat for Both side.
GL30/90/110/130
Non-Glare hard coating is a process that diffuses light by creating irregularity on plastic surfaces.
The more the figure of beside product name, The higher Anti-glare property and Haze.
Regarding GL30, the Non-glare is nearly close to clear, irregularity on plastic surfaces has effect of preventing the watermark and newton ring.
TS
series
Industry-leading abrasion-resistant hard-coated plastic sheet. (e.g. : 10,000RT by steel-wool)
- TSW 310
- Abrasion-resistance hard-coat on PC/PMMA two-layer sheet. Great performance of abrasion resistance and impact resistance.
- TST 310
- Abrasion-resistant hard-coat on PMMA/PC/PMMA three-layer sheet. Great performance of abrasion resistance and less deformation by the temperature changes or humidity variations.
IF
series
Anti-fingerprint hard-coated plastic sheet.
- IFW200
- Anti-fingerprint hard-coat on PC/PMMA two-layer sheet. Great performance of anti-fingerprint and impact resistance.
- IFT 200
- Anti-fingerprint hard-coat on PMMA/PC/PMMA three-layer sheet. Great performance of anti-fingerprint and less deformation by the temperature changes or humidity variations.
TEPROT
series
MSK original hard-coated highly-rigid plastic sheet.
![](images/sheet-film/teprot.jpg)
- TR 2000
- TR2000 has stiffness, scratch resistance, and difficult to cruck.
- TR 2400
- Anti-fingerprint hard-coat on highly-rigid plastic sheet.
REGALIA
series
Super high hardness coated plastic sheet which defies the common wisdom.
![](images/sheet-film/regal_001.jpg)
- RGM 200
- Super high hardness coat on PMMA sheet. Pencil hardness:9H. Easier to print and cut than the glass. No broken piece to scatter even if it breaks.
- RGW 310
- Super high hardness coat on PC/PMMA two-layer sheet. Pencil hardness: 7H. Impact resistance.
BENDARD
series
Hard-coating sheet yet with thermo fomability that was once considered impossible.
![](images/sheet-film/bendard.jpg)
- BRW100N
- PMMA/PC two layers sheet treated by hard-coating which is capable of being thermo formed on PMMA side.
AG
series
Roughness of Hard coating surface creates a diffuse to less specular reflection.
It has Anti-Glare effect, surface hardness, designability with excellent optical performance.
The Gloss and Haze values customizable.
In addition, you can add other treatment such as Anti-Reflection, Water-Repellent.
- AGW
- Base material is PC/PMMA (2layer sheet), it has good impact resistance.
- AGT
- Base material is PMMA/PC/PMMA, it has low warpage by temperature and humidity.
- Variation of Anti-Glare
-
- ・High definition AG
- ・Invisible finger print AG
- ・Water repellency AG
- ・Matte Design
- Additional Function
-
- Hard Coating on Back side/Hard coating
- Anti-Reflection(one side reflectance SCI 0.6% or less)
- Super Water Repellency coating
We can combine in Variation of AG, Haze and Added function.
Functional Film
NREseries
Low rainbow-effect hard-coated PET film.
![](images/sheet-film/nre.jpg)
ABEseries
Anti-blocking hard-coated PET film for ITO process.
![](images/sheet-film/abe_001.jpg)
- ABE2000
- Anti-blocking hard-coat on both sides.
- ABE3100
- Anti-blocking hard-coat on one side and Clear-primer on the other side.
GLE/GLA
series
GLE/GLA series is the textured-finish hard-coated film without filler, which can reduce the glare. Prevents the reduction of the outer-light and makes the easily viewable displays. Regarding base film, GLE series use PET film. GLA series use TAC film.
- GLE1200(x)/GLA1200(x)
- Anti-glare hard-coat on one side.
BGE/BGA
series
BGE/BGA series is the textured-finish hard-coated film with special filler, which can reduce the glare. Prevents the reduction of the outer-light and makes the easily viewable displays. Furthermore, even high-definition displays can prevent glare. (compared to our existing products) Regarding base film, BGE series use PET film. BGA series use TAC film.
- BGE1200(x)/BGA1200(x)
- Anti-glare hard-coat on one side.
![](images/sheet-film/archlite.jpg)
ArchLite®
ArchLite® is MSK’s original high functional plastic sheet for our hard coat.
It has a register trade mark.
